Discreet®
Air Conditioning System
Our new patent pending Discreet® fully internal air conditioning range has been designed specifically for modern flats and apartments that require air conditioning with the added benefit of energy-efficient.
What Is Our Discreet® Air Conditioning System?
Up to now, the only option for apartments or flats without outdoor space or unable to accommodate external units, was to install a large centralised system, that would take up a large amount of sellable space. Our Discrete® system offers an alternative solution to this problem. Not only that, its decentralised design also facilitates an easy and cost-effective way of heating and cooling to individual units within a larger property.
Our new patent pending Discreet® fully internal air conditioning range has been developed to provide an alternative solution to a large and bulky centralised system, for modern flats and apartments that can’t have an external unit. We have re-designed the conventional external system to be fully internal, by utilising the space within the existing property, such as a false ceiling.
Our Discreet® range is the perfect option for developments with one or two-bedroom apartments that need to cool or heat up to 3 rooms, with the ability to control the temperature independently in each room.
How Does Our Discreet® Air Conditioning System Work?

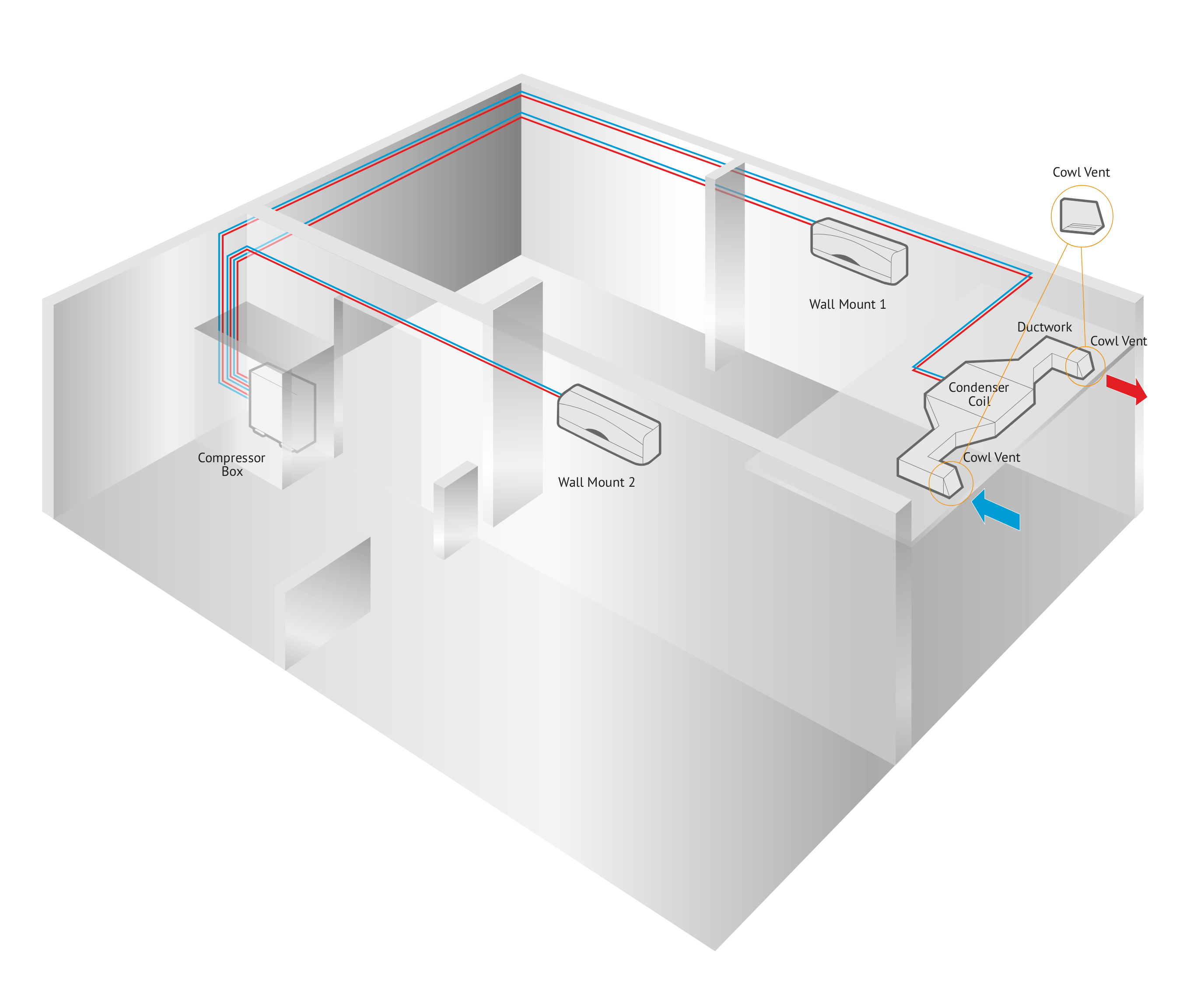

Instead of using an external condenser, which requires outside air to cool, the condenser is split into two sections; the compressor box and the condenser coil housing; the condenser housing is installed above a false ceiling internally.
We then bring outside air in through ductwork and pass it over the condenser coil to allow the absorbed latent heat within the refrigerant to be removed and discharged externally.
The compressor box is located within a storage/utility cupboard or can even be `boxed in` on an external balcony. As our Discreet® condensers have been separated into two sections making each component much smaller, the compressor box can be neatly hidden internally or externally
and connects up to the condenser coil via refrigerant pipework. The compressor box is then connected via refrigerant pipework to the internal units that discharge the conditioned air. Internal units can be wall, floor or ceiling mounted just like conventional air conditioning indoor units.
Internal pipework, communication cables and condensate drains can be hidden within partition walls, above false ceilings or buried under screed floors.
The Benefits of our Incognito® Air Conditioning System?

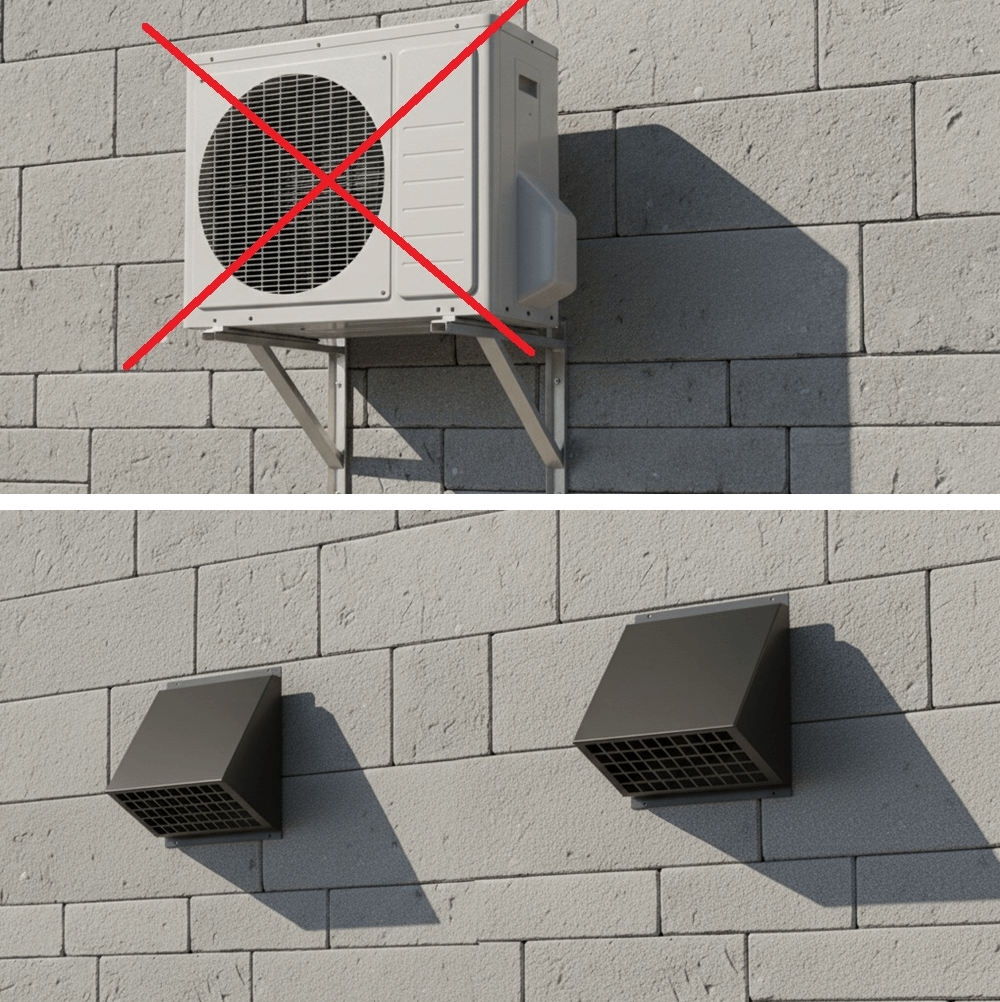

Avoids cosmetic issues - no external units preserves the property’s aesthetic appeal
Avoids noise issues - very quiet condenser coil and no noisy communal equipment required
Simplifies compliance with Part O building regulations
Space-saving compact design
Easy access for repairs and maintenance
Quiet internal compressor box
Eliminates the need to measure usage per property (decentralised solution)
Offers heating and cooling
Increases sellable space (no plant room required) and helps improve ROI
Designed and manufactured in the UK
Helps achieve higher building sustainability scores
Very simple to specify and install
Read our Brochure
Click the below to view our product brochure.
What System Options Are Available?
Compressor Box Options
Currently, there are two products in this range: a 5.2KW two-room version and a 7.5KW three-room version, which are ideal for one and two-bedroom flats, respectively.
The system is available with a wide array of indoor units (wall-mounted, ducted, or floor-mounted) with a range of capacities to suit each room.
Indoor Unit Options
Urban Designer

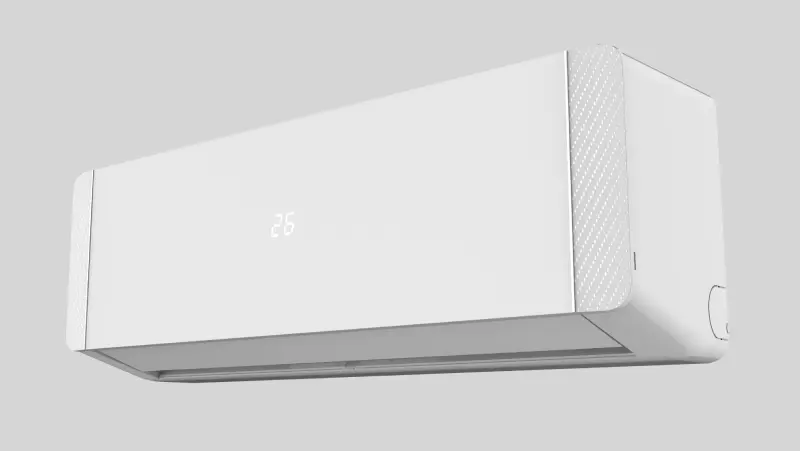

A sleek modern wall-mounted unit, with swappable textile covers, this unit is able to be customised to match the style of any room.
Urban Compact
A compact solution perfect for small spaces, this wall unit is both functional and customisable to blend into your home's decor.
Ducted
Maintain a seamless look within your property by choosing a ducted unit hidden behind a modern and minimalist grill.
How We Can Help You?
We work with architects, property developers, mechanical design engineers, and numerous other professionals involved in residential construction projects to provide an end-to-end solution for air conditioning your new property. We offer consultancy and advice to ensure we deliver and install the best air conditioning system for your needs, giving you one less thing to worry about.
Get in touch to schedule a consultation call, where we can:
- Gain an understanding of your project's needs
- Explain further details about our various solutions
- Advise on how we can assist in delivering and installing our systems within your project
- Address any other questions you may have regarding our systems, delivery or the installation process.
Learn How Our Solutions Can Solve Your Challenges When Installing Air Conditioning in New Apartment Developments.
